# Exporting to glTF
Export your 3D content from Unity and Blender to web-optimized glTF format.
**What you can export:**
- 🎨 Materials (PBR, custom shaders, MaterialX)
- 🎬 Animations (Timeline, Animator, clips)
- 📦 Scenes and prefabs (for lazy loading)
- 💡 Lightmaps and skyboxes
- 🎭 Meshes, textures, and more
---
## Quick Start
::: tip Unity
Add a `Needle Engine` component to your scene to get started. By default, your entire scene exports automatically on save.
:::
### Export Scope
**Default behavior:**
Your entire scene exports as a glTF file to the `assets/` folder, including any assets referenced in components.
**Optional - Use `GltfObject` to limit scope:**
Add a `GltfObject` component to export only that GameObject and its children. Content outside `GltfObject` roots is ignored.
**Advanced - Nested `GltfObject` for deferred loading:**
Nest `GltfObject` components to defer loading—child glTFs only load when the parent becomes active.
- See: [Hotspot sample](https://engine.needle.tools/samples/hotspots)
- Note: Cross-references between nested GltfObjects not supported
### Settings
**Exclude from export:**
Tag objects as `EditorOnly` to exclude them and their children.
**Performance:**
- **Smart Export** - `Edit > Project Settings > Needle` - Only export on change
- **Auto Compression** - `CompressionSettings` component added automatically to `Needle Engine`
---
## Scene Structure & Loading
### Multiple Scenes & Lazy Loading
Split your app into multiple scenes for faster loading. Use the [`SceneSwitcher`](/docs/how-to-guides/components/scene-switcher) component to load and unload scenes at runtime.
**Benefits:**
- Smaller initial load times
- Load content only when needed
- Better performance on all devices
**Example:** [needle.tools](https://needle.tools) loads each section as a separate scene on demand.
### Recommended File Sizes
Keep glTF files within these limits for optimal performance:
| Metric | Recommended Max | Notes |
| --- | --- | --- |
| **File Size** | 50 MB uncompressed | Usually compresses to 10-20 MB |
| **Vertices** | 500k | Lower for mobile VR |
| **Lightmaps** | 4× 2k textures | Larger = slower loading |
::: tip Optimization Tools
- **Needle Compression** - Powerful automatic texture and mesh compression (enabled by default via Auto Compression component)
- **Progressive Loading** - [gltf-progressive](/docs/gltf-progressive/) loads assets progressively for faster perceived load times
- **Split Large Scenes** - Split content using `GltfObject`, `SceneSwitcher`, or custom components with prefab/scene references (works in Unity and Blender)
:::
**Compression & Loading Comparison:**
```mermaid
flowchart LR
A[Original Size
50 MB] --> B[Traditional Compression
gltf-transform]
B --> C[Compressed File
10-20 MB
⏱️ Download entire file
then decompress & display]
A2[Original Size
50 MB] --> D[Needle Compression
Draco + KTX2
+ Progressive Loading]
D --> E[Base Quality
0.2-2 MB
⚡ Shows immediately]
D --> F[High Quality
1-5 MB total
📈 Streams in progressively]
style C fill:#fdd
style E fill:#dfd
style F fill:#dfd
```
**Key difference:** Traditional compression requires downloading the entire file before display. Needle's progressive loading shows content immediately while quality improves in the background.
**Learn more:**
- [Progressive Loading](/docs/gltf-progressive/) - Technical details and implementation
- [Optimization & Compression](/docs/how-to-guides/optimization/) - Texture/mesh compression settings
- [Compression Examples](https://cloud.needle.tools/) - Real-world file size comparisons
### Scene Assets (Unity & Blender)
Reference other scenes from your scripts to export them as separate glTF files. Works with both Unity scenes and Blender scenes.
**Unity:** Use `UnityEditor.SceneAsset` fields in your components. Referenced scenes export as separate glTF files and can be loaded as `AssetReference` from TypeScript.
**Blender:** When you reference a Blender scene from a component, it exports as a separate glTF file automatically.
**Hot Reload:** When working in a referenced scene, changes are detected and only that scene re-exports automatically.
**Example:** On [needle.tools](https://needle.tools), each section is set up as a separate scene and exported into multiple glTF files that load on demand:
### Prefabs (Unity only)
Export Unity prefabs as individual glTF files by referencing them from your scripts using `AssetReference`:
@[code ts twoslash](@code/component-prefab.ts)
Prefab nesting is supported—referenced prefabs are also exported automatically.
---
## How to Export Animations
Needle Engine supports a powerful subset of animation features:
**Supported:**
- **Timeline** - Activation tracks, animation tracks, track offsets
- **Animator** - Top-level state transitions
- **Animation Clips** - All loop modes
- **Procedural Animations** - Via scripting
**Limitations:**
- Blend trees not supported
- Sub state machines not supported
- Materials won't be duplicated on export (split materials manually if needed)
::: tip Advanced Animation Support
Needle Engine supports [KHR_ANIMATION_POINTER](https://github.com/ux3d/glTF/tree/extensions/KHR_animation_pointer/extensions/2.0/Khronos/KHR_animation_pointer), allowing animation of almost all properties including script variables.
:::
---
## How to Export Materials
### Physically Based Materials (PBR)
Materials are automatically converted to glTF PBR materials on export.
**Recommended shaders (best control):**
- **UnityGLTF/PBRGraph** ⭐ - Full PBR features (clearcoat, sheen, iridescence, transmission, refraction, dispersion)
- **UnityGLTF/UnlitGraph** - Unlit materials
**Supported with conversion:**
- Universal Render Pipeline/Lit
- Universal Render Pipeline/Unlit
- Standard (Built-in)
- Autodesk Interactive (Built-in)
- Unlit (Built-in)
Other materials are converted using property name heuristics.
### Custom Shaders
Export custom shaders in two formats:
#### MaterialX Format (Recommended)
MaterialX is a standard for describing materials in a graph-based way, independent of the rendering engine.
[Learn more about MaterialX →](./materialx)
#### WebGL2 Format
Export custom unlit shaders directly as WebGL2 code.
**Limitations:**
- Only **unlit** shaders officially supported
- Lit shaders experimental (limited rendering modes)
- No shadow receiving on custom shaders
- Skinned meshes not supported
- Coordinate system differences may require adjustments (UV origin, X-axis flips)

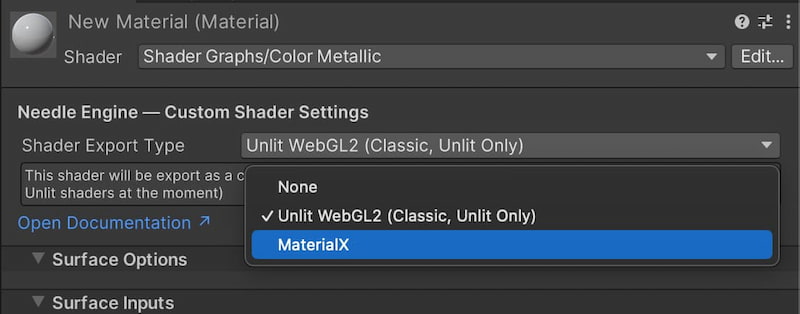

**To export:** Use the dropdown in the Material header to select shader export type.
---
## How to Export Skybox
Skyboxes and environment reflections are automatically baked and exported.
### Unity Skybox
The Unity skybox and custom reflection are automatically baked and exported.
**Customize:**
- **Change resolution:** Add a `SkyboxExportSettings` component to your scene
- **Disable export:** Untick `Embed Skybox` on your `GltfObject` component
### Blender Skybox
Blender world environment is automatically exported as skybox.
[Learn more about Blender export →](/docs/blender/)
---
## How to Export Lightmaps
Lightmaps baked in your 3D editor are automatically exported. The lighting you see in your editor is what you get on the web!
**Supported:**
- Unity's built-in lightmapper and third-party solutions
- Blender's Cycles renderer with baked lighting
---
## Platform-Specific Guides
### Unity
- [Unity Export Guide](./unity/) - Unity-specific export workflows
- [Unity Lightmapping](/docs/tutorials/fundamentals/unity-integration#lightmaps) - Settings and best practices
### Blender
- [Blender Export Guide](./blender/) - Blender-specific export workflows
- [Blender Lightmapping](/docs/blender/lightmapping) - Baking in Blender
